Anatomy of an Android App
Anatomy of an Android app refers to its core structure and essential components that work together to create a fully functioning Android application.
An Android application is made of the core components: Activities, Services, Broadcast Receivers, and Content Providers. These components are declared in the AndroidManifest.xml file and work together with resources (Layouts, Images, MP3 Files, etc.) to create an Android application.
- Components of an Android App
- Activities
- Services
- Broadcast Receivers
- Content Providers
- Manifests
- Resources
Components of Android Application
Application components are the essential building blocks of an Android application. These components are loosely coupled by manifest file AndroidManifest.xml which contains the description of each component and how they interact.
| Component | Description |
|---|---|
Activities |
The presentation layer of our applications |
Services |
Services are like invisible workers of our app |
Content Providers |
Handle data and database also share data beyond app |
Broadcast Receivers |
Handle communication between Android OS and applications |
1. Activities
An activity represents a single screen in an Android App.
Activities, by using fragments and views, set the layout and display the output, and also respond to the user’s actions.
An activity is implemented as a subclass of class Activity.
public class NewMailActivity extends Activity {}
class NewMailActivity : Activity() {}
Note:
Modern Android development (Jetpack) almost exclusively uses extends AppCompatActivity to ensure backward compatibility with UI features.
2. Services
A service is a component that runs in the background to perform long-running operations.
For example, a service might play music in the background while the user is in a different application, or it might upload an image to the server without blocking user interaction.
A Service is implemented as a subclass of Service class as follows:
public class UploadVideoService extends Service {}
class UploadVideoService : Service() {}
Services can be: Foreground (visible to the user), Background (not visible to the user, runs in background), Bound (connected to another component).
3. Content Providers
Content providers manage and persist the application data; they also typically interact with the SQL databases.
Content providers are also responsible for sharing the data beyond the application boundaries. They are used to share structured data such as contacts, media files, and notes between different apps in Android.
A Content Provider should be a subclass of ContentProvider class. Apps communicate with content providers using URIs.
public class ContentProviderName extends ContentProvider {
@Override
public boolean onCreate() {
return true;
}
// Other required abstract methods must also be implemented
}
class ContnetProviderName : ContentProvider() {
override fun onCreate(): Boolean {
return true
}
}
4. Broadcast Receivers
Broadcast Receivers simply respond to broadcast messages from other applications or from the system. For example, when the device is plugged in, it shows a notification that the device is charging.
A Broadcast Receiver is implemented as a subclass of BroadcastReceiver.
public class ReceiverName extends BroadcastReceiver {
@Override
public void onReceive(Context context, Intent intent) {
// TODO: Add logic here
}
}
class ReceiverName : BroadcastReceiver() {
override fun onReceive(context: Context?, intent: Intent?) {}
}
Broadcast receivers don’t have UI and run for a very short time.
Examples:
- Battery low
- Phone rebooted
- Internet connectivity change
Android Manifest File
The AndroidManifest.xml is the configuration file for an Android app. Every app must have an Android Manifest file. You can think of it as a Table of Contents for your app. The Android System first looks at the Manifest file before it runs any code.
Android Manifest File Contains:
- Permissions
- Package Name
- Android Version Support
- Activities
- MainActivity (Entry Point of app)
- hardware features support
- Services
- other configurations
<manifest package="com.example.myapp">
<application>
<activity android:name=".MainActivity">
<intent-filter>
<action android:name="android.intent.action.MAIN"/>
<category android:name="android.intent.category.LAUNCHER"/>
</intent-filter>
</activity>
</application>
</manifest>

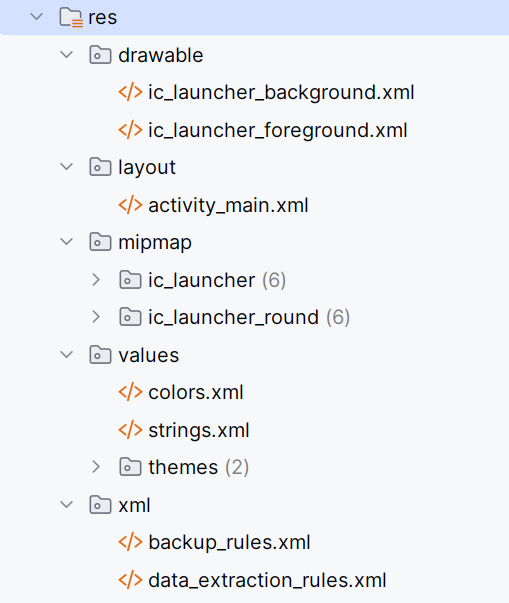

Resource Folder
The Android Resource folder (or res folder) contains all the resources for an Android App, like:
- drawable
- layouts
- mipmap
- colors
- themes
- strings
- raw files
- animation files
- xml
Final Thoughts
An Android app isn’t just code and UI it’s a structured ecosystem of components that work together. Understanding the anatomy of an Android app helps you debug better, write cleaner code, and scale efficiently.
FAQs
Q1: What are the 4 main components of Android?
A: Activity, Service, BroadcastReceiver, and ContentProvider.
Q2: What is the role of AndroidManifest.xml?
A: It defines all app components, permissions, and metadata.
Q3: Can an app have multiple Activities?
A: Yes, most apps have several Activities to manage different screens.
Q4: What’s the difference between a Service and an Activity?
A: An Activity has a UI, while a Service runs in the background without a UI.
